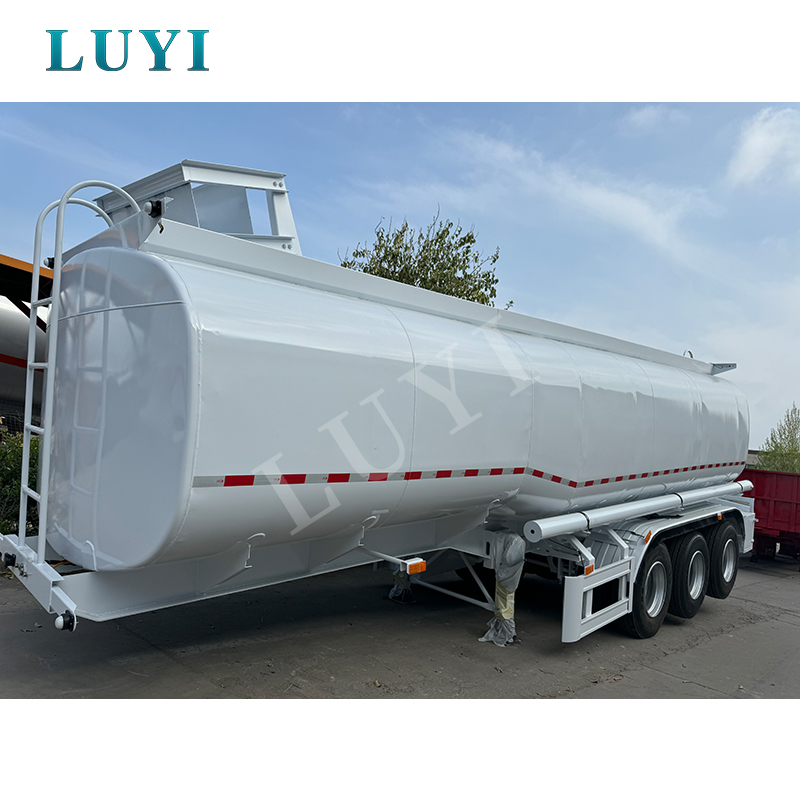

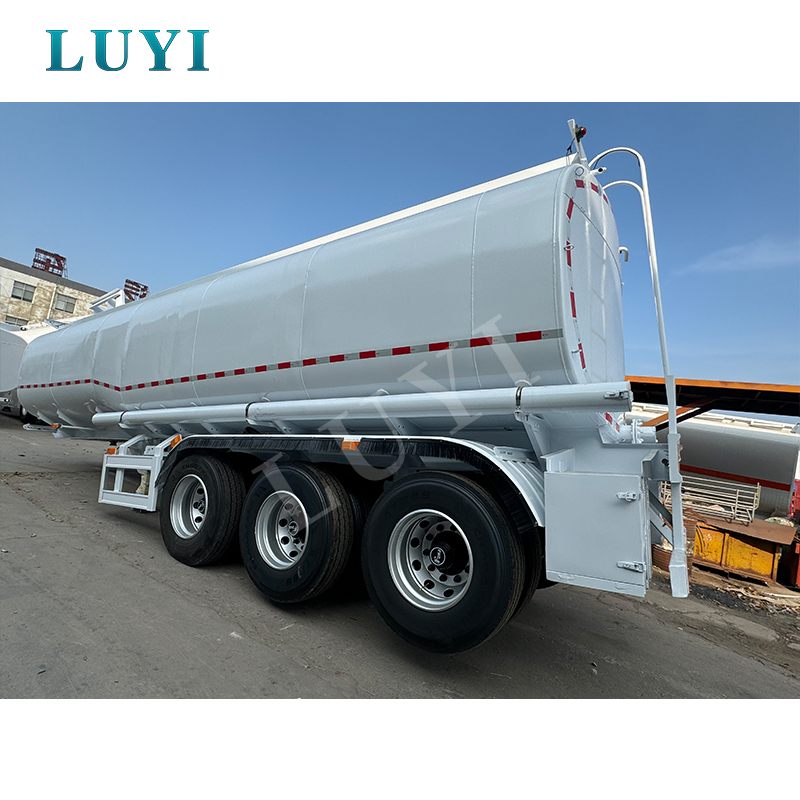

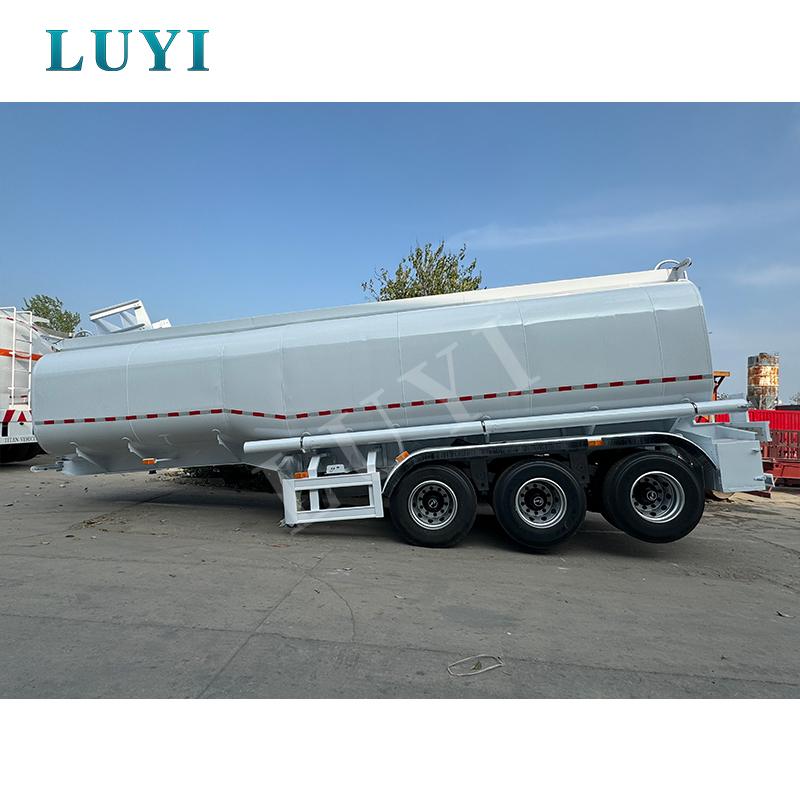

Fuel/Oil Tank Semi Trailer
Fuel/oil Tank Semi Trailer equipped with tri-axle which is multifunctional transportation for all kinds of fuel and high-capacity loading.
We can customize different capacities of different materials according to customers' requirements.
We have passed ISO9001:2008 &TUV certificates, obtained Special Equipment design license and Special Equipment manufacture license certificates, which are the highest level (A1 level) licenses of pressure vessels design and manufacture in China.
Fuel/oil Tanker Semi Trailer with automatic submerged arc welding, pass strict quality inspection, including X-ray radiation, ultrasonic flaw detection, etc.
Product Features
1. The shape of the water tank: square, oval and round.
2. Tank material: carbon steel, stainless steel, steel lining, glass steel, plastic tank (polyethylene).
3. The oil tank is equipped with a multi-channel anti-wave baffle, which can be divided into different compartments and loaded with a different oil. And can achieve pump in, pump out through the table, and pump in, pump out not through the table, the flow through the table, and not through the table.
4. High-pressure gas leakage detection is adopted. The tank body has the characteristics of high strength, stable center of gravity, and safe and stable vehicle.
5. All kinds of alcohol, sulfuric acid, hydrochloric acid, and salinized chemical tank trucks are made of imported stainless steel (thickness 4mm-5mm) or plastic tank (polypropylene)(thickness 12mm-22mm).
6. The oil tank is composed of a power output device, transmission shaft, gear pump, oil tank body and pipe network system. The pipe network system consists of an oil pump, tee ball valve, bidirectional ball valve, filter and pipe.
7. Fuel dispensers and reels are optional.
8. Gear pump, centrifugal pump, heavy oil pump, stainless steel pump can be installed and can be installed with a heating tube and insulation layer.
Product Parameters
Name | Petrol tanker semi-trailer |
Trailer Model | Round Shape or Ellipse |
Outside Dimensions | 11000mm-13000mmX2490mmX3950mm/3800mm-3900mm |
Tare weight | About 8-12.8T |
Total Volume | 25m³-60m³ |
Material | 1.Q235B/Q345B carbon steel 2.5XCT4aluminum5454 3.304 stainless steel |
Tanker Body Material | 1. 6mm/5mm Q235B/Q345B carbon steel 2. 7mm/6mm 5XCT4 aluminum 5454 3. 5mm/4mm 304 stainless steel |
Axles | 13T/16T, FUWA/BPW/HuaJing brand |
Axle Number | 2/3/4/ Axle or multi-axle |
Main Beam | Height: 450mm-520mm, the upper plate thickness is 14mm-25mm, the middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 manganese steel. |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(specification can be Optional) |
King Pin | JOST brand 2.0 or 3.5-inch bolts type or Welding type |
Support legs | JOST/FUWA/YAHUA brand or China brand 28ton(two speed or single speed ) |
Rear ladder | Dismountable or foldaway |
Wheelbase | 8050/7650+1300mm, 5060/6660/6960/6580+1310+1310mm |
Spring leaf | 8/10/12/16 pieces |
Manhole Cover | 2/3/4/5/6 piece Carbon steel API manhole cover,500mm European standards |
Brake Chamber | 6 double brake chamber |
Electrical System | 24V, 7core socket, lights according to European standards |
Accessory | One tooling boxes, Two spare tire carrier, Two fire extinguisher |
Other tools | A waterproof toolbox. (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 2 unit cranking bar and instruction manual) |
Discharge mouth | diameter is 280mm |
Receptacle | 7ways (7wire harness) |
Application and After-Sales Service
We are committed to the design and manufacture of tank vehicles. We have a strong design team with nearly 20 years of design experience, which can not only design and manufacture products but also provide professional technical services and solutions for customers' transportation projects.
1: Our company promises a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of the foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
Advantages in details
Axle: Well-known brands FW, BPW, LY shaft support trailer walking, high occupancy.
Accessories: High quality components JOST, WABCO support secure and long term use of trailers.
Bottom valve: Each tank is fitted with a bottom valve to protect the over-flowing tanker from leakage and ensure safety.
Emergency valve: Fast response, low failure support safety, longer timer using tire protection.
