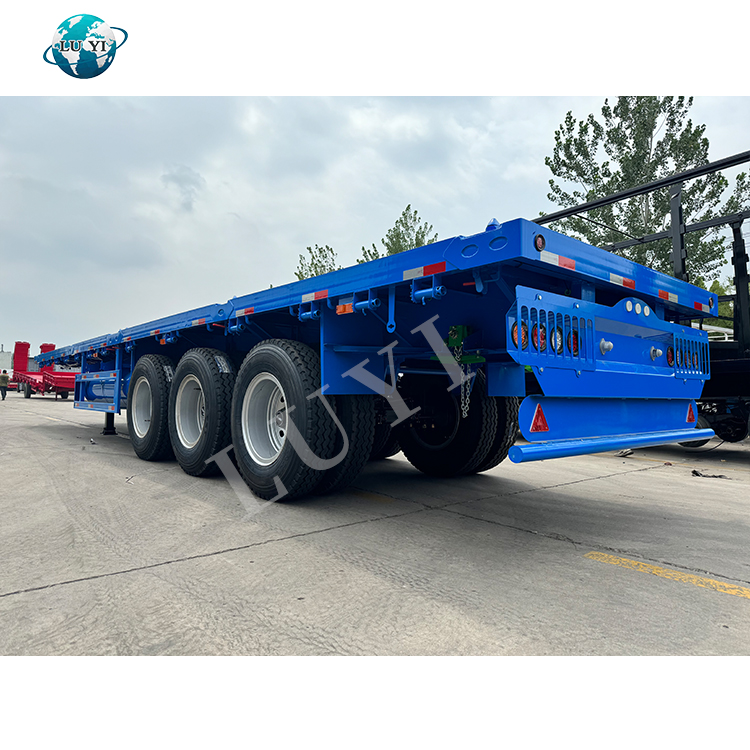

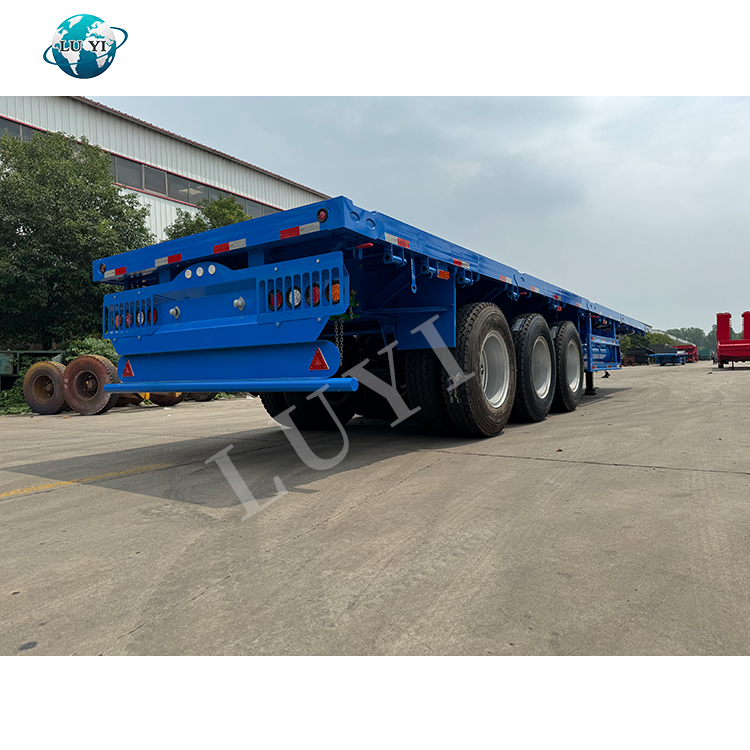

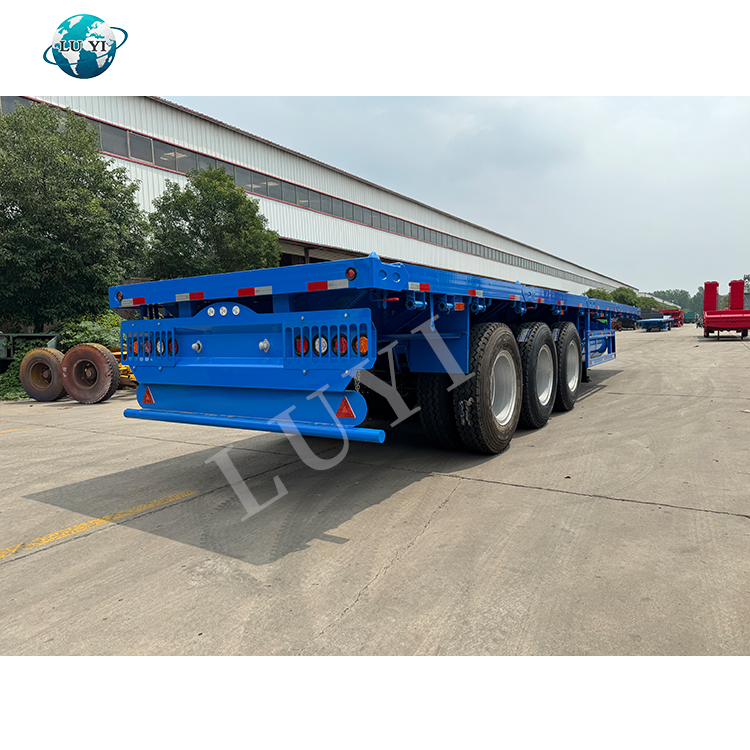

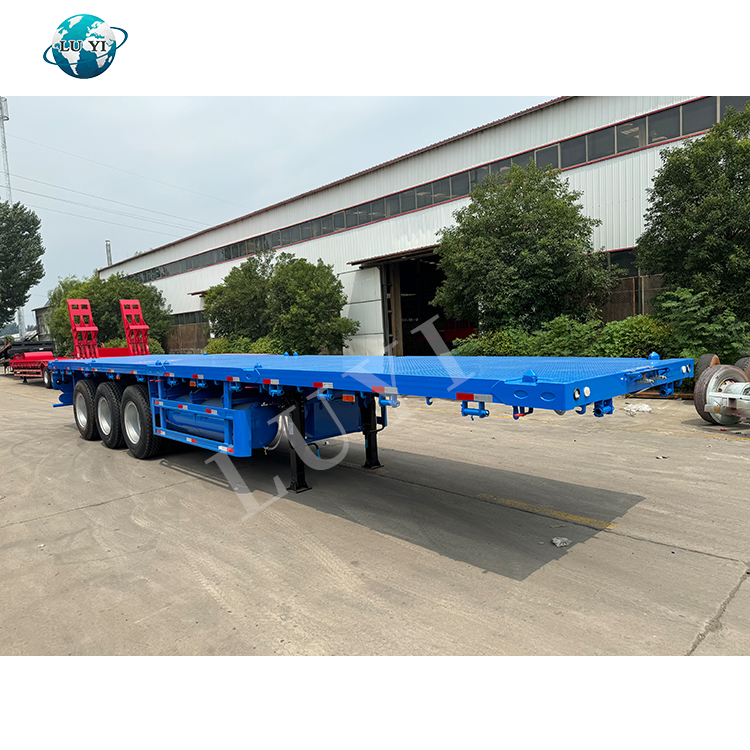

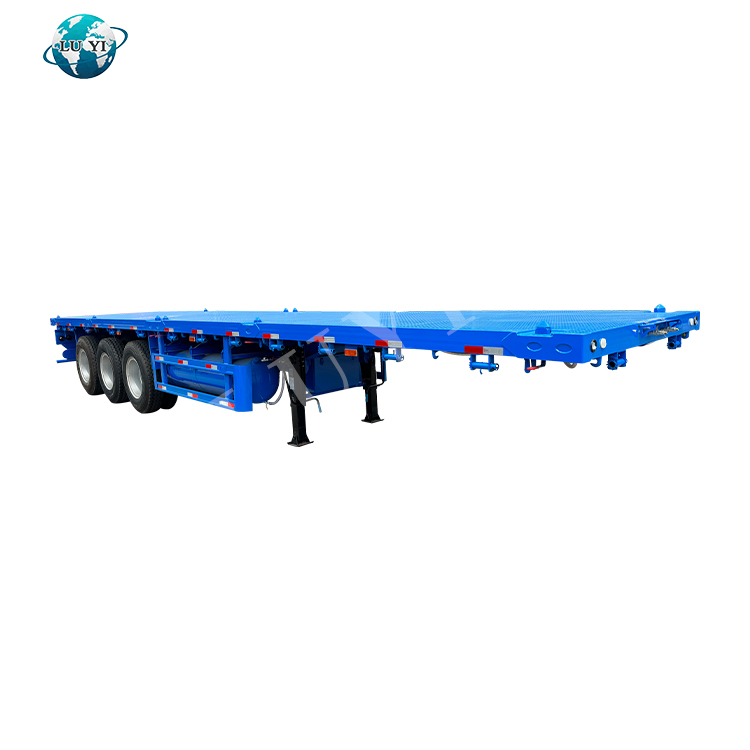

3 Axle 40ft Flatbed Semi-Trailer
3 axle 40ft flatbed semi-trailer with 12 units twist locks for carrying a container of 30ft, 40ft, 45ft or two containers of 20ft container. The flatbed trailer has a payload ranging from 20 tons to 80 tons and has 2 axles, 3 axle and 4 axles.
Product features
1. We use high quality tensile steel to reduce the possibility of beam fracture. The main beam is made of high strength steel Q345B, and the axle can be BPW or FUWA.
2. Customization is widely accepted. We also can offer another model according to your different requirements, the extendable flatbed trailer for transporting wind blade, steel pipes and fittings and other long items, flatbed trailer with an upright column for log loading, etc.
3. Main beam warranty for 2 years.
4. BPW, WABCO, JOST, Michelin and other global semi-trailer accessories brands.
Product parameter
Name | 3 axle 40ft flatbed semi-trailer |
Overall dimension | 12500 *2500 * 1550mm (According to customer demand) |
Loading capacity | 30-150T |
Tare Weight | 6.5-10T |
Axle | 2 axles/ 3axles/4 axle/ Multi axle, 13 T/16T/20T BPW / FUWA /other brand |
Rim | 8.00-20/8.5-20/8.8-20/9.0-22.5... China Brand |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20...(specification can be Optional) |
Suspension | The mechanical suspension(German Type or America Type) or Air suspension |
Spring leaf | 90(W)mm×13(Thickness)mm×10(Layer)/100mm×12mm×12(specification can be Optional) |
Wheel base(mm) | 6880+1310+1310. |
Kingpin | JOST brand 2.0 or 3.5-inch bolts type or Welding type |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
The material of the Main beam | Height: 500mm-520mm, the upper plate thickness is 14mm-25mm, the middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345B Carbon Steel. |
Side beam | 16mm-25mm channel steel (Material is Q235 carbon steel) |
Brake chamber | 6 double brake chamber |
Landing gear | JOST/FUWA/Yahua brand 28T(two speed or single speed) |
Twist Locks | Four, Eight or Twelve pieces(lifting type or Twist Screw Type) Optional locks for loading containers |
Platform plate | 3mm Checkered steel plate |
Brake system | The dual Line braking system |
ABS system | China brand (KORMEE, Haina and Wabco is optional) |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Valve | WABCO/KANGJIAN valve(optional) |
Toolbox | 1set standard toolbox( waterproof type) |
Spare tire carrier | 1 piece ( Patent type) |
Light | Tail lamp with turn signal, brake light & reflector, side lamp, etc |
Painting | Complete Chassis sandblasting to clean rust, 2 coat of anticorrosive primer, 2 coats of final paint |
Shipping Terms | By bulk cargo carrier, RORO or 40HQ container |
Application and after-sale services
Our company promises a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
MAINFRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS |
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||
KINGPIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | ||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS |
BRAKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||
AIR RESERVOIR | 6 MONTHS | ||||
ITEM NAME | WARRANTY | ||||
OTHERS | LEAF SPRING | 3 MONTHS | |||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||
EMERGENCY RELAY VALVE | 3 MONTHS | ||||
BRAKE SHOE | 3 MONTHS | ||||
RELAY VALVE | 3 MONTHS | ||||
