Permalink: tautliner-curtain-side-trailer

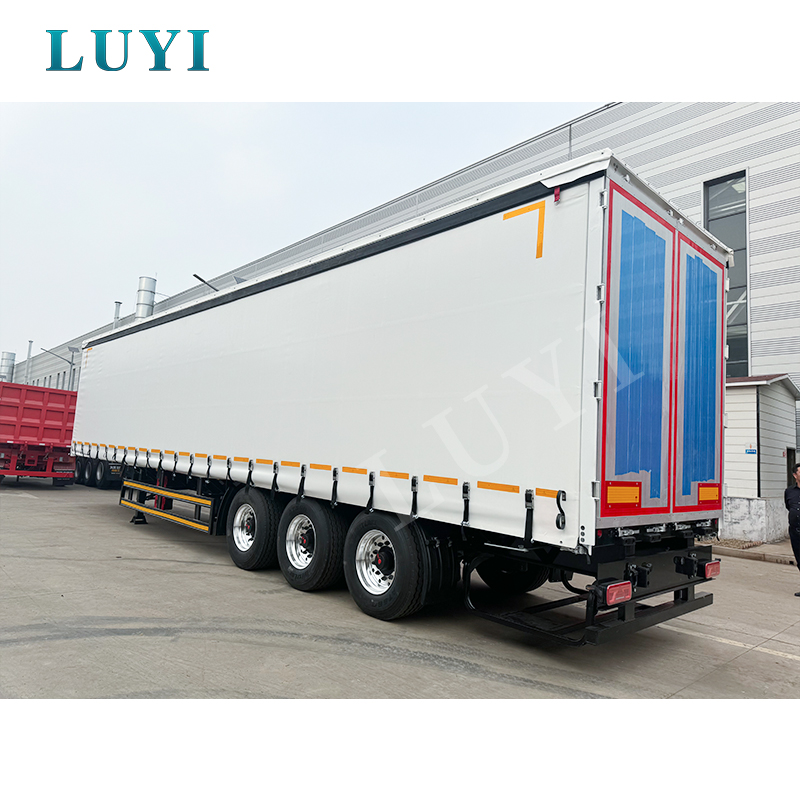

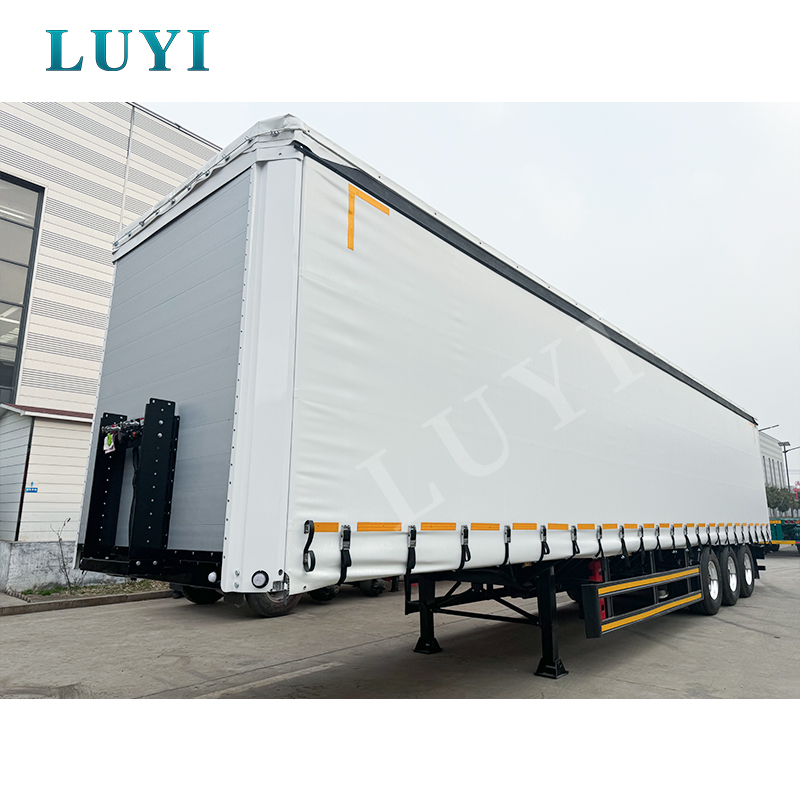

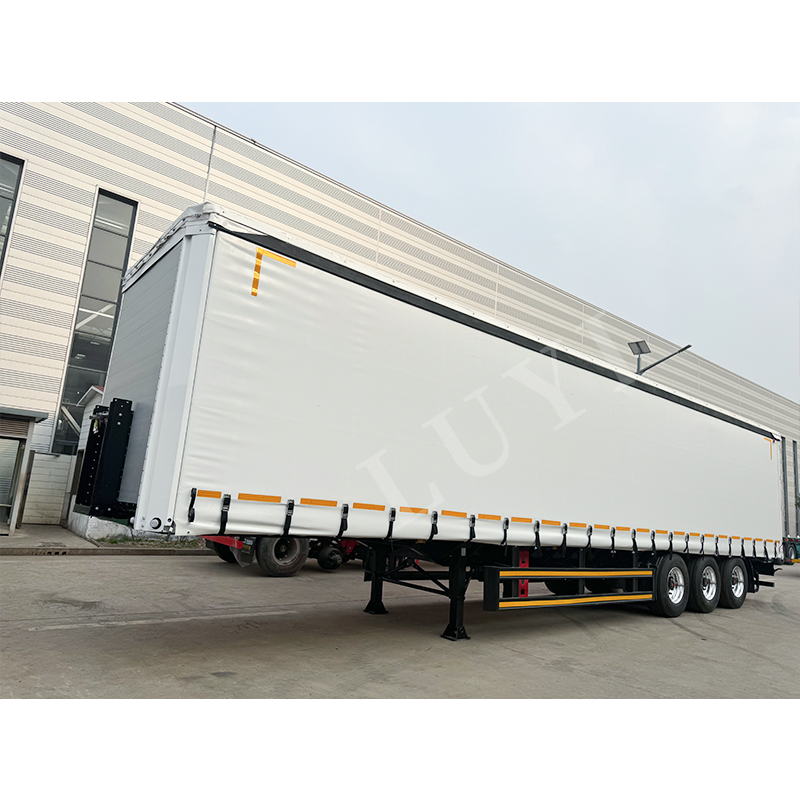

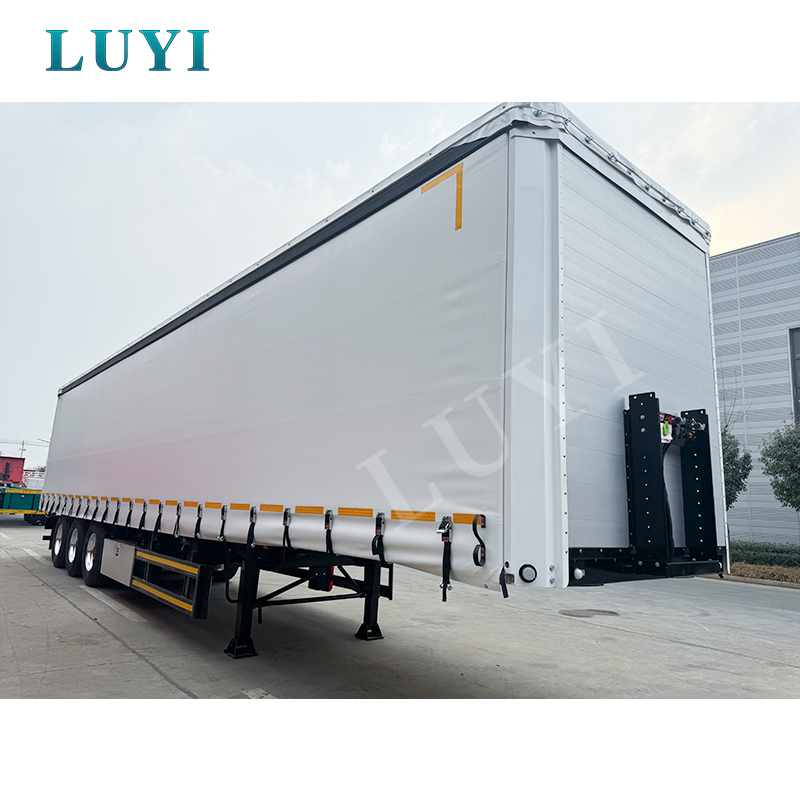

Tautliner/Curtain Side Trailer
Van curtain side trailer with detachable tarpaulin. The series vehicle uses through going beam structure, has a frame structure with flat type and gooseneck type, and has high integral strength, small weight, beautiful appearance, safe and reliable operation. Luyi supply a wide range of tarpaulin van curtain trailer, which is used for carrying dry cargo loads. These Tarpaulin Cargo Trailers can carry different kinds of standard dry cargo loads, pallets, bulk bags cements according to demand. Easier loading and unloading. We use BPW or other famous brand axles, aluminum rims, steel body to decrease the tare weight of the trailer to load more capacity.
Product Features
1. Finite Element analysis used in a vehicle to promote product performance.
2. Strong Loading Capacity, 30-100 Tons Loading Range.
3. High Strength full-thickness Steel, titanium content of 0.98‰, which ensure Beam and frame’s Toughness and strength.
4. 42 tough ribs design, Ensure the safety and carrying capacity of the trailer.
5. Multi Door-Opening Style. Side/Rear/Wing Opening.
6. Carbon steel and aluminum and tarpaulin type Van Trailer.
Product Parameters
Product name | Tautliner/curtain side trailer |
Axle number | Two, Three or Four and more |
Axle specs. | FUWA ,YAHUA or BPW Brand |

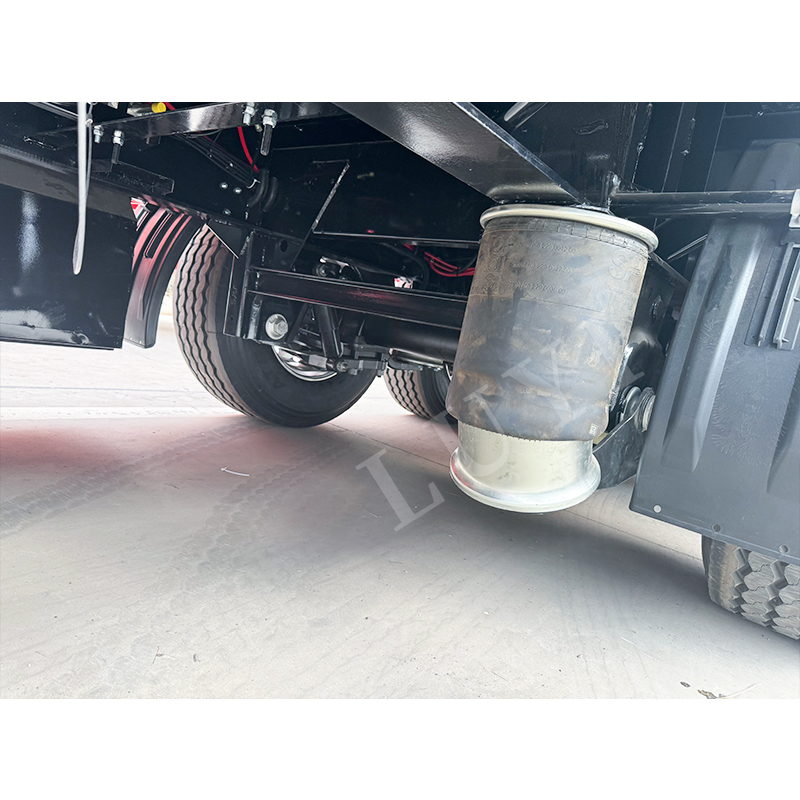

Suspension | Mechanical or air suspension (American or German) |
Rim | 6.5-20/8.25-22.5/9.00*22.5 /80-.0-20/8.5-20 |
King Pin | JOST 2" or 3.5" traction pin |
Support legs | JOST, FUWA or YAHUA brand 28T |
Wheelbase | 7180/6680/6260+1310+1310mm, Or other |
Steel Spring | 8/8/8, 10/10/10, 12/12/12 pieces per axle |
Ladder | Manual or hydraulic automatic |
Electrical system | 24V, 7 pin socket, One set 7-core standard Cable |
Tire | 8.25R20/8.25R16/11.00R22.5/12.00R22.5/10.00R20/11.00R20/12.00R20 |
Number of Tires | 8 or 12 or 16 pieces |
Spare Tire Carriers | 2 pieces |
The material of the Main beam | Height: 450mm-520mm, the upper plate thickness is 14mm-25mm, the middle plate thickness is 8mm-12mm, down plate thickness is 16mm-25mm; Material is Q345 Carbon Steel. |
Curtain material | PVC or according to your requirements |
Vehicle application | Cargo transport other bulk cargo transport |
Braking system | WABCO RE6 relay valve; T30/30 spring brake chamber;40L air tanks |
Application of Tarpaulin Curtain Side Height Van Curtain Trailer
Mainly used for distribution of packaging cartons or hard plastic boxes of food, beverages, medicines, and other lighter goods. Relative to the fully enclosed van semi-trailer trailer more suitable for loading and unloading these light goods, because it allows loading and unloading workers directly from both sides of the body unloading, eliminating the need for people to repeatedly enter and exit the interior of the envelope, you can load more More cargo, but also means that this semi-trailer more fuel-efficient, with the same fuel economy higher economic benefits.
More type for you to choose:
1. Aluminum composite truck type:
a. Lightweight, good corrosion resistance;
b. The van is beautiful and high strength;
c. Recyclable
2. Glass fiber reinforced plastic composite truck type:
a. Plates stiff enough;
b. Improve sound insulation;
c. Easy for advertising.
d. Good integrity, anti-seismic, and fatigue resistance.
3. Ordinary high strength steel truck type:
a. High strength cold rolled corrugated steel plate, no skeleton structure.
b. Fully enclosed box, only rear door open for market.
4. Wing open or side curtain-type:
a. Made of high quality steel
b. Two wings open for the market, easy loading and unloading
After-sales service
1: Our company promises a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
2: Operational problems, technical configuration issues, etc., We will promptly provide feasible solutions for our customers. We are investing in the construction of a number of the foreign service department, will be better to serve the global customers.
3: We are serious about after-sales service.
4. Regular return visit, technical support, and sincere service.
Luyi vehicle the professional manufacturer of a flatbed semi-trailer, low bed semi-trailer, tipper trailer and fuel tanker, truck, welcome to consult.
