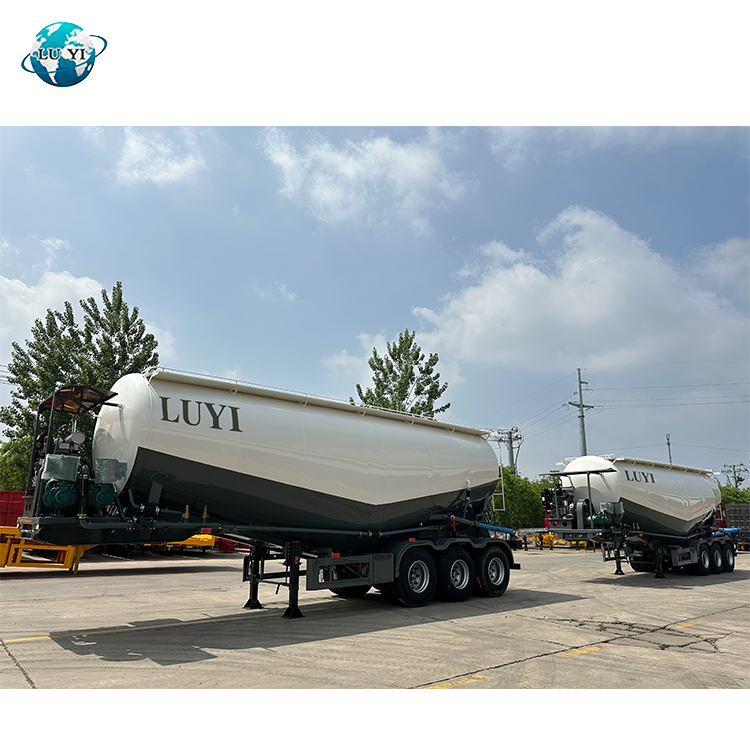

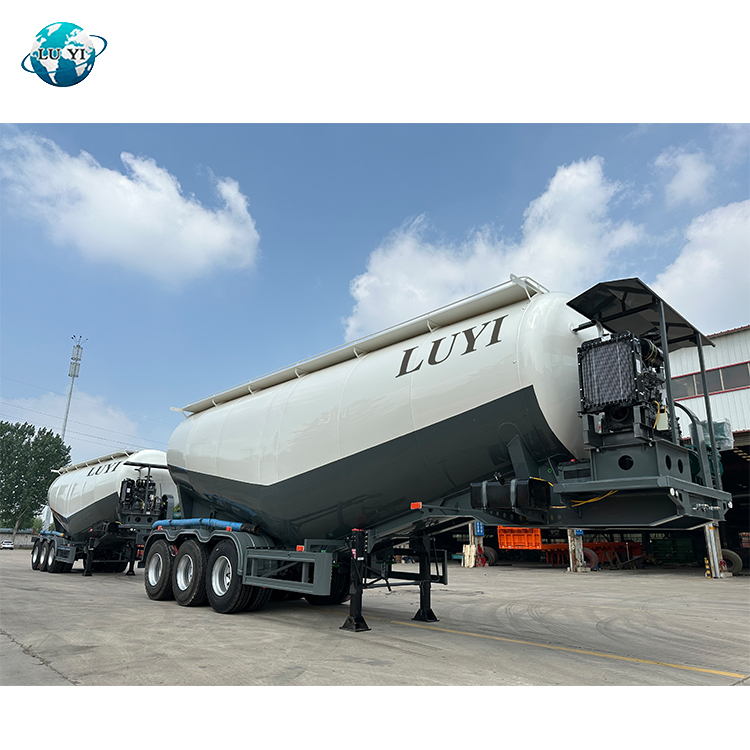

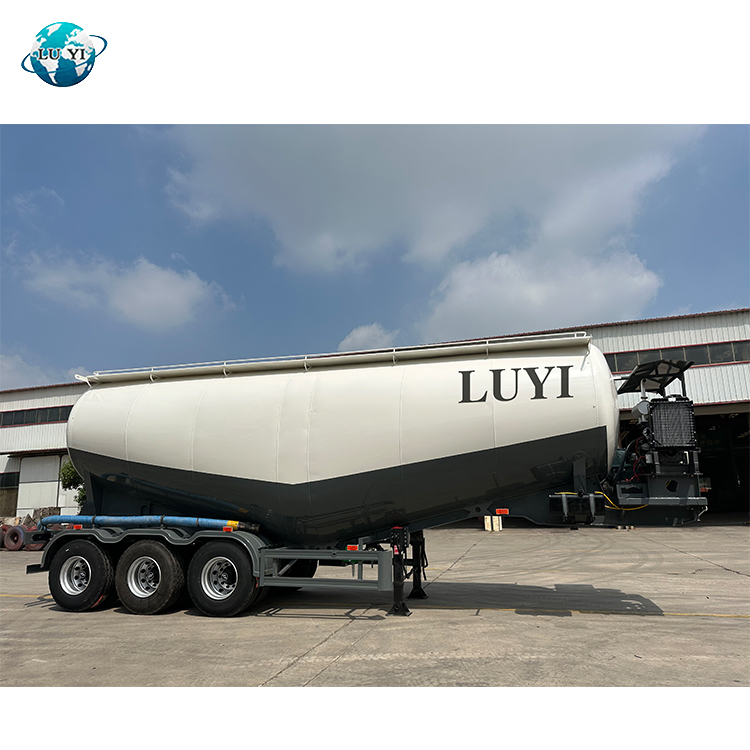

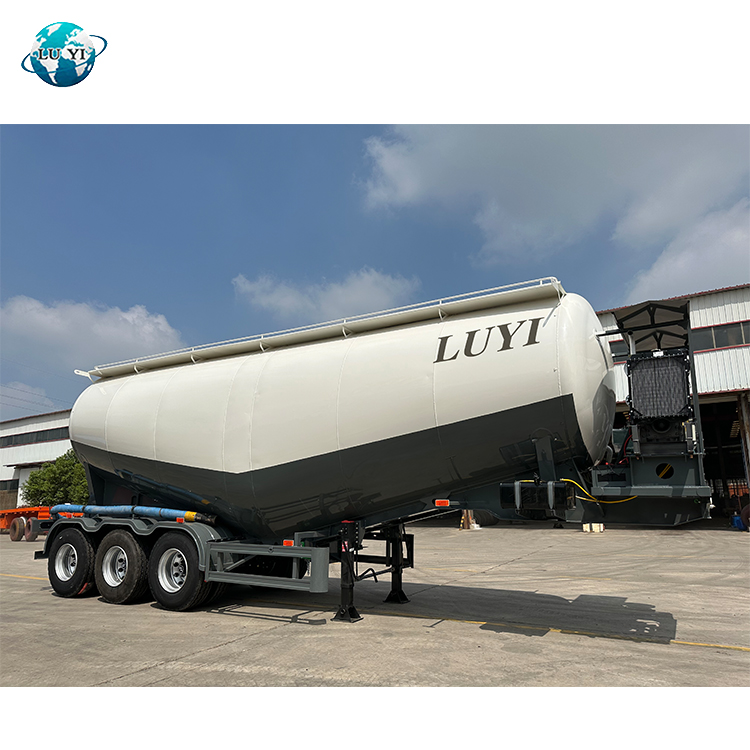

cement truck powder tank semi trailer
cement truck powder tank semi trailer ---It is used for the transportation of dry powder materials such as fly ash, cement powder, lime powder and mineral powder, and pneumatic unloading. As is known to all, the remainder and discharge speed are very important to the bulk cement tank container semi-trailer. Under the pressure of 0.2MPa, the average unloading rate of the cement tanker is not less than 1.2t/min of our bulker and the Remainder rate of fewer than 0.05 tons.
LUYI Vehicle cement truck powder tank semi trailer no matter from material or some parts of the cement tank trailer. Like a diesel engine, air compressor, axle, suspension, Landing gear, we are all selected famous brands and ensure that you receive from the factory what you expect.
Product Features
LUYI dry goods cement powder car, using high strength wear-resistant steel. Bulk fly ash trailer with the most durable fabric, especially for the African market, considering road conditions. The anti-deformation, anti-seismic and concavity of this cement tank trailer make your transportation safe and beneficial. Used for transportation of cement, flour, baking soda, fly ash, alumina and other bulk goods.
Our dry bulk cement powder carrier adopts famous brand parts, such as diesel engines: weichai brand has high power torque, low fuel consumption, low noise and high reliability. Save cost and ensure long service. We also use JOST, WABCO brake valve, etc. For the 2axles cement carrier of 30-35 tons, our customer's requirement is 30cbm. So we can customize the bulk goods according to the needs, such as the volume, 30cbm, 40cbm, 60cbm or 80cbm.
Product Parameters
Specifications of Tanker Body | |
Dimension | 12000mm*2490mm*3990mm( Exact size depends on the final design) |
Tare weight kg | About 11800KGS-13000KGS |
Tank capacity (CBM) | 30cbm-60cbm（Volume optional） |
Shape | Optional(v or w shape) |
Compartments | One or two-compartment |
Tanker Body Material | 1. T622JJ carbon steel 2. 5XCT4 aluminum 5454 |
End Plate | 4mm or 5mm T622JJ carbon steel 5mm or 6mm 5XCT4 aluminum 5454 |
Rim | 8.00-20/8.5-20/8.8-20/9.0-22.5 China Brand |
Tire | 12R22.5/11R22.5/13R22.5/11.00R20/12.00R20( brand can be Optional) |
Engine | Weichai 4105 Engine |
Manhole Cover | 500mm carbon steel or aluminum alloy manhole |
Bottom Valve | 3''/ 4” disc valve |
Discharging Valve | Diameter is 3 or 4 inch |
Discharging Pipe | 4” rubber hose, 2 pcs, 6m/each |
Air compressor | 10 m3,12m3 |
Diesel Engine | Weichai Huafeng, Tianhe 4102/4105 |
Main Beam | Welding design or Special design, connected by bolts and nuts. Material: Q345 carbon steel Height 500mm, |
Axle | 2 or 3 axles, BPW/FUWA brand（Optional） |
Landing Gear | JOST(D200T)or China brand 28T(two speed) |
Brake System | WABCO Valve with big chamber |
King Pin | JOST 2.00 or 3.5-inch bolt-in kingpin |
Suspension | Mechanical suspension or Air suspension |
Leaf Spring | 90(W)mm×13(Thickness)mm×10(Layer) or 100mm×12mm×12 |
Rear ladder | Dismountable |
Lights | Turning Light, Side Marker Light, Tail Light |
Voltage | 24V |
Receptacle | 7 ways (7 wire harness) |
Painting | Complete Chassis sandblasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
ABS | Optional |
Accessories | One standard tool box |
Shipping Terms | By Bulk Cargo Carrier, RORO or 40HQ Containers |
Application and After-Sales Service
Reply your inquiry in 12 working hours;
Experienced staffs answer all your questions;
Customer’s design is available for certain products(OEM);
Spare parts for all types of engine machinery with reasonable price;
Different kinds of semi-trailer can be provided with competitive prices.
We also supply spare parts (original, OEM, and replacement) for all types of trucks and trailers and nice quality to ensure the trucks and trailers being in good working conditions.
The normal production process is very important. It will affect the quality, durability and even the customer's confidence in our products.
(1) Normal procedure
A plasma cutter is used to cut steel into small pieces suitable for welding and splicing
(2) welding
The next step after the steel is cut is welding. The main work of this procedure is the beam
Welding: weld the upper and middle floor together. This process will adopt the submerged arc welding process. This welding method is very special and is specially used for the welding of i-beam. After the welding process is completed, other parts of the trailer will use different welding methods for steel-argon arc welding, arc welding, manual welding, gas welding, etc.
(3) sandblasting: this process is used for the first step of surface cleaning, stress elimination and rust removal before painting.
(4) electrophoretic coating
This process is used for more detailed surface cleaning
(5) epoxy zinc primer coating
This process is a lasting process before painting after the painting is the beginning of the trailer
(6) assembly
After our efforts, the final process is the trailer assembly. All parts of this process are assembled, including tire wheel, hub, hub, flat top, gear, suspension, spring, brake groove, air, wire, electricity, wire, brake system, etc
(7) packing
The last step is packaging. All trailers are packed in different ways according to customer requirements. After packing, the trailer can be shipped to the customer
