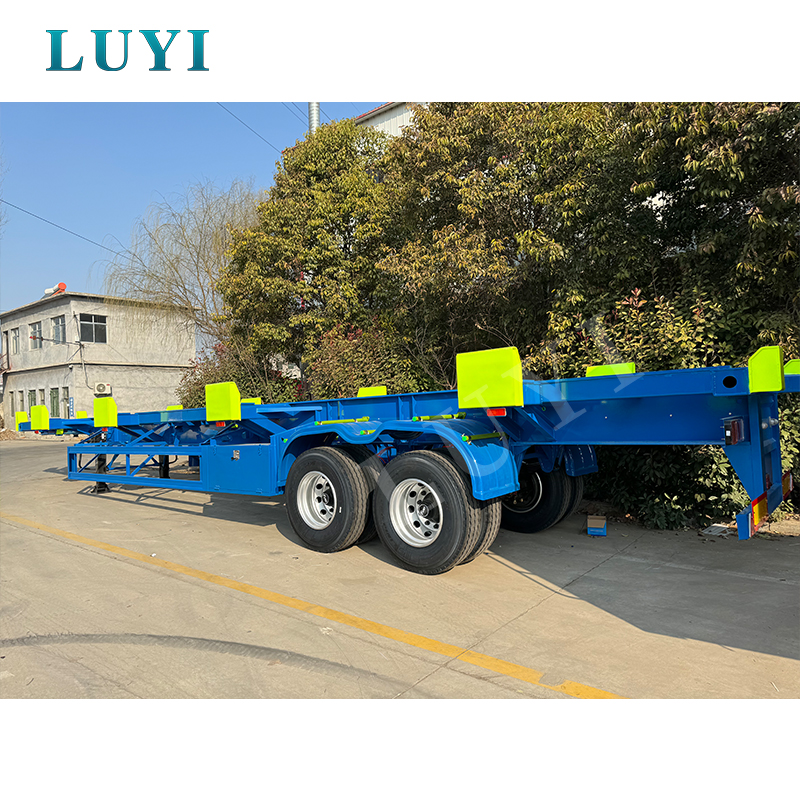

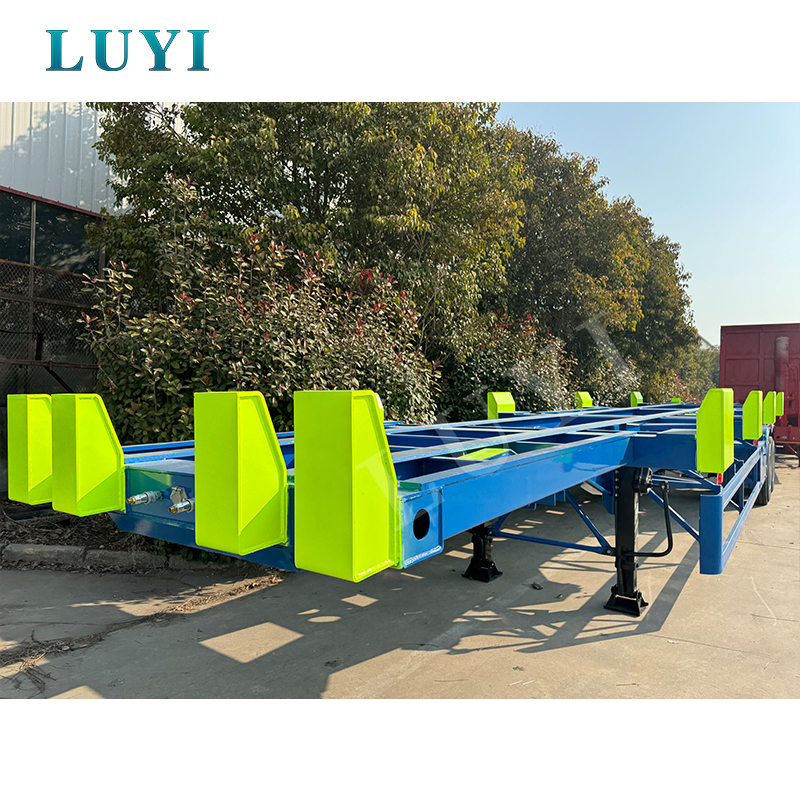

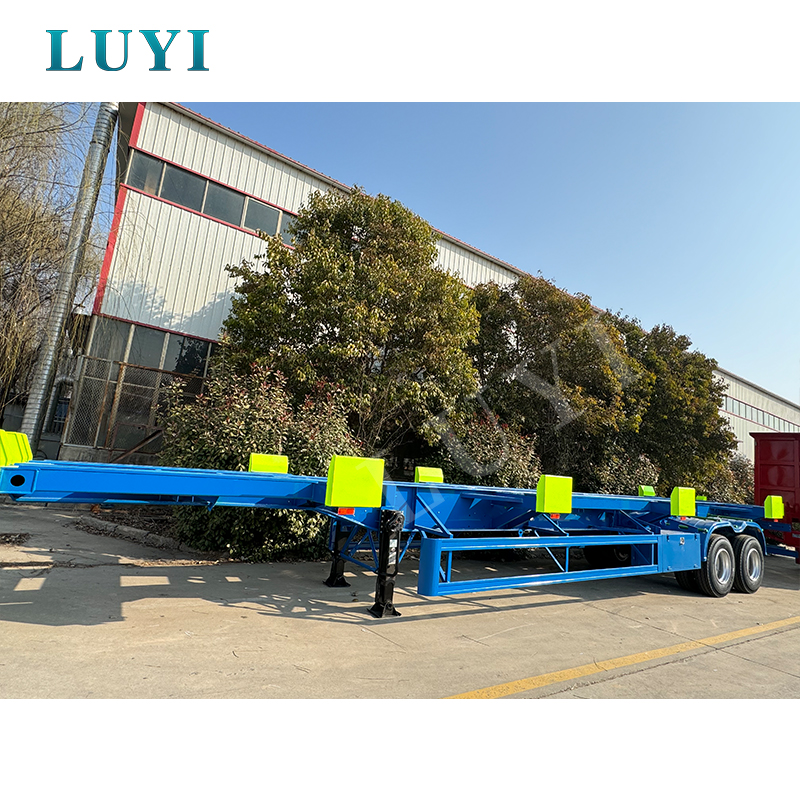

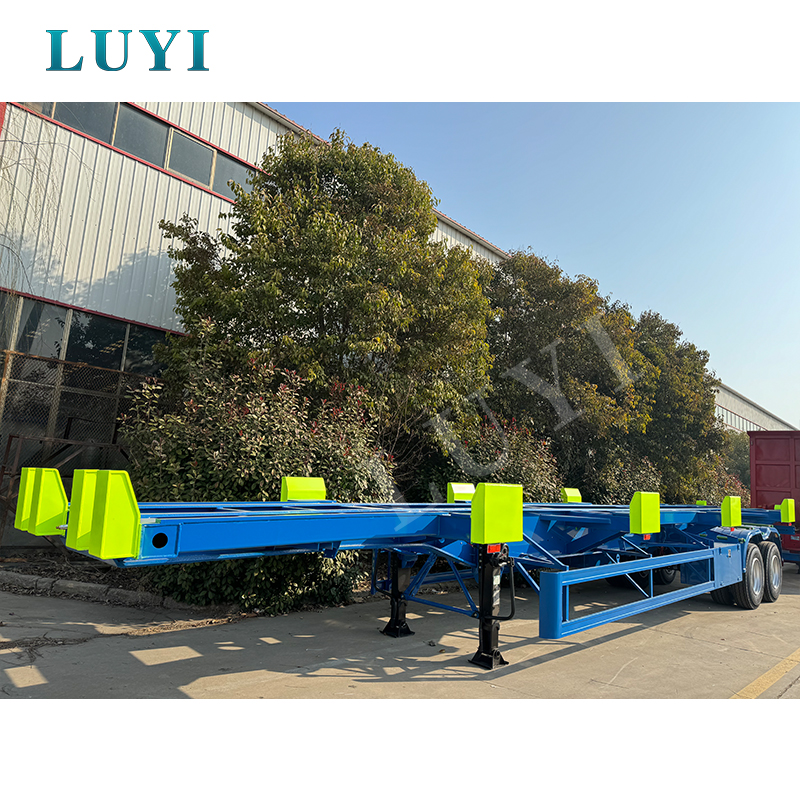

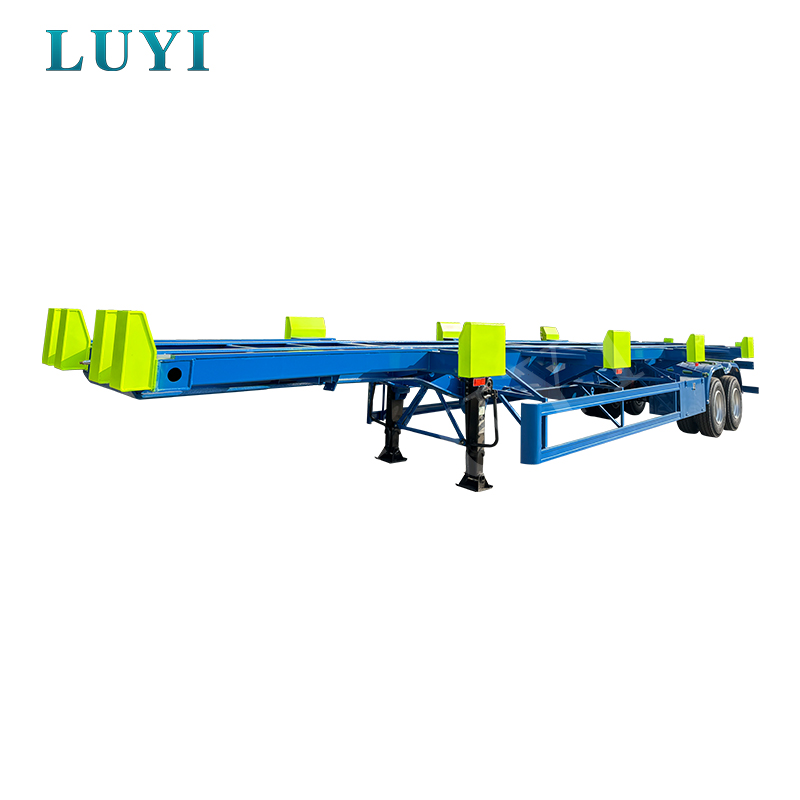

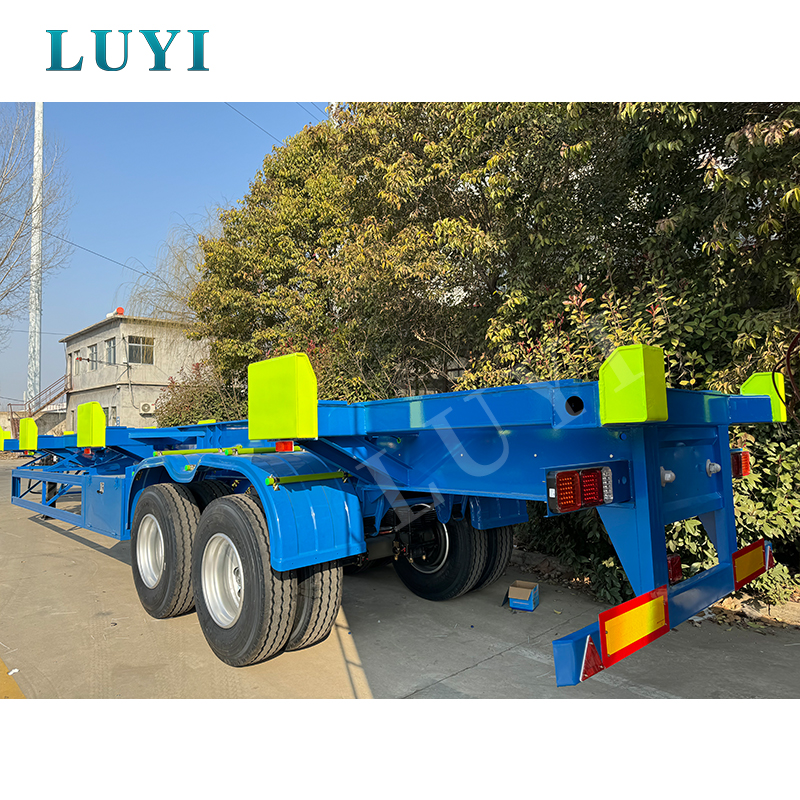

40ft 2 Axle Skeleton Semi-Trailer
40ft 2 axle skeleton semi-trailer can be applied to the transportation of 20-foot, 30-foot, and 40-foot containers.
Skeleton semi-trailer Dedicated for transportation of 20ft, 40ft, 45ft, 48ft, 53-foot containers, it can be optionally transported with dangerous goods.
According to the customer's needs, We can design a gooseneck skeleton semi-trailer, skeleton semi-trailer, flatbed semi-trailer, low bed semi-trailer and other structures.
Product Features
1. The advanced automatic submerged arc welding process
2. We use a complete main beam, which can increase the bearing capacity by 20%, improve durability, balance load stress more evenly, and have a longer service life
3. Advanced process design and strict quality control to avoid tire wear. After more than ten years of research and strict quality control, we can ensure that the tires are in good condition during 20,000 kilometers of driving without problems of wear and abrasion
4. The important parts are strengthened, such as the thickness of the reinforced suspension is 8mm and the diameter is 60mm.
Product Parameters
40ft 2axle skeleton semi-trailer | |
DIMENSIONS | |
Tare weight | 6000kg-6500kg |
Size | 12260mm-12500mm*2480mm-2500mm*1500mm |
Payload | 30T |
Main beam | Heavy duty and extra durability designed I beam; opting for high tensile steel Q345, welded by automatic submerged-arc processes. Top flange 14mm,width140mm;Middle Flange 8mm height 500mm;bottom flange16mm,width 140mm |
Side beam | No |
Cross-member | 10# channel steel(Q235) or W shape cross member |
Floor | No or Part 3mm checkered plate |
Side protection and bumper | Standard or according to your requirements |
Axle | 2 axle FUWA brand 13T |
Suspension | Mechanical suspension or air suspension(brand optional) |
Leaf spring | Leaf spring 10pcs*90*13mm or airbag |
Tire | 11.00R20/12.00R20/11R22.5/12R22.5/825R20/385/65R22.5 Tire optional |
Wheel rim | 8.5-20/9.0-20/8.25-22.5/9.0-22.5/9.75 wheel rim optional upon the choice |
Kingpin | JOST or another brand 2”/3.5” bolt-in kingpin |
Landing gear | JOST or other brand two-speed, landing gear 28T |
Twist lock | 4/8/12pcs |
Vehicle application | 20ft/40ft container transport |
Braking system | WABCO RE6 relay valve; T30/30 spring brake chamber;40L air tanks |
ABS | Optional |
Lights | LED 8 sidelights and 2 rear lights 2 width lamp |
Painting | Complete chassis sand blasting to clean rust,1coat of anticorrosive prime,2coats of final paint |
Accessories | One standard tool box、one crank、one shaft head wrench、four side light、two rear light |
Date of delivery | 20 workdays after we received 30% of contract value T/T down payment. |
Application and after-sale services
Our company promises a one-year warranty period, during this period, under normal use if there is damage to the accessories, we will provide our customers with free new accessories.
MAINFRAME | FRAME | 1 YEAR | RUNNING GEAR | AXLE | 6 MONTHS |
SUSPENSION | 6 MONTHS | AXLE BEARING | 3 MONTHS | ||
KINGPIN | 1 YEAR | WHEEL HUB | 3 MONTHS | ||
BALANCE ARM | 3 MONTHS | TIRE | 6 MONTHS | ||
ITEM NAME | WARRANTY | ITEM NAME | WARRANTY | ||
BRAKING DEVICE | BRAKE DRUM | 3 MONTHS | SUPPORT DEVICE | LANDING GEAR | 6 MONTHS |
BRAKE CHAMBER | 3 MONTHS | SPARE WHEEL CARRIER | 6 MONTHS | ||
AIR RESERVOIR | 6 MONTHS | ||||
ITEM NAME | WARRANTY | ||||
OTHERS | LEAF SPRING | 3 MONTHS | |||
BRAKE CHAMBER DIAPHRAGM | 3 MONTHS | ||||
EMERGENCY RELAY VALVE | 3 MONTHS | ||||
BRAKE SHOE | 3 MONTHS | ||||
RELAY VALVE | 3 MONTHS | ||||
